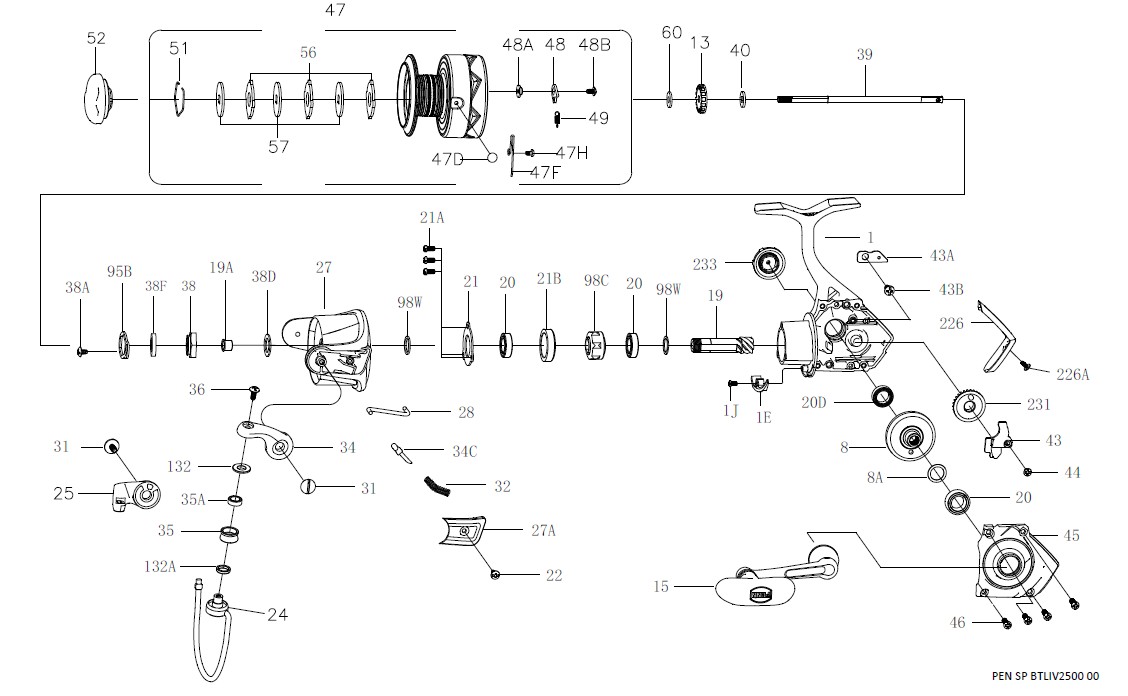

展開図番号 |
品番 |
パーツ名 |
単価(税抜) |
1J |
1489177 |
Housing Slope Screw |
300円 |
1E |
1489251 |
Housing Slope |
300円 |
1 |
1632134 |
Housing |
2500円 |
8A |
1191028 |
SHIM GEAR |
300円 |
8 |
1529181 |
MAIN GEAR |
3800円 |
13 |
1529419 |
Click Ratchet |
200円 |
15 |
1632348 |
Handle Assembly |
2600円 |
19A |
1364314 |
19A-BTLII2500 Pinion Bushing |
200円 |
19 |
1529447 |
PINION GEAR |
1200円 |
20D |
1211610 |
20D-5000BTL Spool Ball Bearing |
2000円 |
20 |
1308050 |
20-CFT3000 BALL BEARING |
2000円 |
21A |
1192644 |
Bearing Retainer Screw (3 req) |
600円 |
21B |
1192646 |
COLLAR |
200円 |
21 |
1485197 |
Bearing Retainer |
200円 |
22 |
1203978 |
Bail Pivot Cover Screw |
200円 |
24 |
1529460 |
Bail Wire Assembly |
400円 |
25 |
1529449 |
Bail Holder |
500円 |
27 |
1632135 |
ROTOR |
600円 |
27A |
1632136 |
Bail Pivot Cover |
200円 |
28 |
1529463 |
Trip Lever |
200円 |
31 |
1313814 |
Bail Arm Screw (2 req) |
200円 |
32 |
1529429 |
Bail Spring |
200円 |
34C |
1313816 |
Pivot Arm |
200円 |
34 |
1609382 |
Bail Arm |
200円 |
35A |
1489200 |
35A--Roller Bearing |
2000円 |
35 |
1529453 |
Line Roller |
300円 |
36 |
1251748 |
BAIL STUD SCREW |
200円 |
38A |
1203995 |
Rotor Locking Plate Screw |
200円 |
38D |
1308070 |
38D-CFT3000 ROTOR NUT WASHER |
600円 |
38F |
1632341 |
Main Shaft Seal Ring |
200円 |
38 |
1632351 |
Rotor Nut |
200円 |
39 |
1529464 |
MAIN SHAFT |
400円 |
40 |
1249042 |
Spool Shaft Washer |
200円 |
43 |
1313820 |
43-CFT2500 CROSSWIND BLOCK |
500円 |
43B |
1489213 |
Plate Screw (5 req) |
300円 |
43A |
1489274 |
Crosswind Block Plate |
200円 |
44 |
1191843 |
SCREW CROSSWIND BLOCK |
400円 |
45 |
1632352 |
Housing Cover |
1000円 |
46 |
1192645 |
Screw (3 req) |
300円 |
47D |
1489217 |
Line Clip |
300円 |
47F |
1489218 |
Line Clip Spring |
300円 |
47H |
1489219 |
Line Clip Spring Screw |
200円 |
47 |
1632137 |
SPOOL ASSEMBLY |
5000円 |
48B |
1450260 |
Spool Click Screw |
200円 |
48 |
1529436 |
Click Tongue |
200円 |
48A |
1529437 |
Click Tongue Washer |
200円 |
49 |
1211605 |
49-3000SG CLICK TONGUE SPRING |
300円 |
51 |
1313823 |
Drag Retaining Ring |
200円 |
52 |
1632354 |
Drag Knob Assembly |
500円 |
56 |
1313825 |
DRAG WASHER |
300円 |
57 |
1192041 |
Keyed Washer (3 req) |
200円 |
60 |
1192059 |
Thrust Washer |
200円 |
95B |
1308081 |
Rotor Locking Plate |
400円 |
98W |
1192229 |
Clutch Washer |
200円 |
98W |
1204004 |
98W-3000PUR Clutch Washer |
300円 |
98C |
1489279 |
Clutch/Sleeve Assembly |
3000円 |
132 |
1489280 |
Roller Washer |
200円 |
132A |
1489281 |
Line Roller Bushing |
200円 |
226A |
1529386 |
Rear Cover Screw |
200円 |
226 |
1632315 |
Rear Cover |
200円 |
231 |
1313828 |
231-CFT2500 CROSSWIND GEAR |
1000円 |
233 |
1632346 |
Bearing Cover Assy |
300円 |
