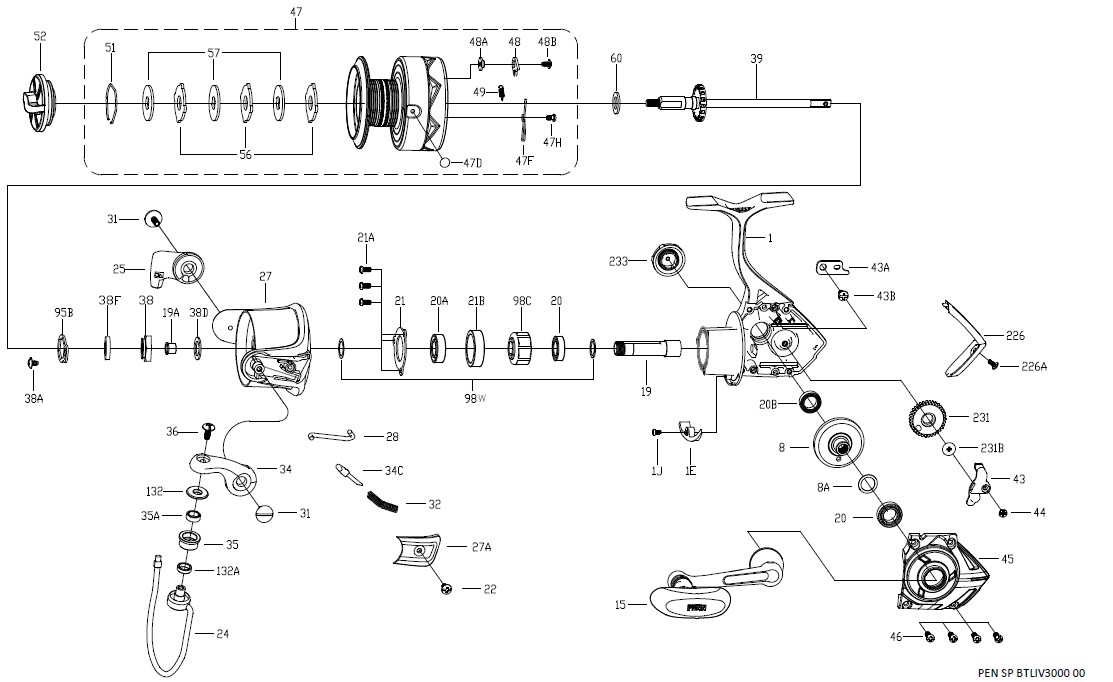

展開図番号 |
品番 |
パーツ名 |
単価(税抜) |
1E |
1489173 |
Housing Slope |
300円 |
1J |
1489177 |
Housing Slope Screw |
300円 |
1 |
1632368 |
Housing |
2500円 |
8A |
1191028 |
SHIM GEAR |
300円 |
8 |
1529181 |
MAIN GEAR |
3800円 |
15 |
1632337 |
Handle Assembly |
2400円 |
19A |
1191252 |
BUSHING PINION |
300円 |
19 |
1529183 |
PINION GEAR |
1200円 |
20B |
1211610 |
20D-5000BTL Spool Ball Bearing |
2000円 |
20 |
1308050 |
20-CFT3000 BALL BEARING |
2000円 |
20A |
1308051 |
20A-CFT3000 Upper Pinion Ball Bearing |
2000円 |
21A |
1192644 |
Bearing Retainer Screw (3 req) |
600円 |
21 |
1308052 |
Bearing Retainer |
500円 |
21B |
1308053 |
Collar |
600円 |
22 |
1203997 |
Screw |
300円 |
24 |
1529184 |
Bail Wire Assembly |
500円 |
25 |
1529185 |
Bail Holder |
500円 |
27 |
1632338 |
ROTOR |
600円 |
27A |
1632369 |
Bail Pivot Cover |
200円 |
28 |
1529188 |
Trip Lever |
200円 |
31 |
1308063 |
31-CFT3000 Bail Arm Screw (2 req) |
600円 |
32 |
1191586 |
Ball Spring |
300円 |
34C |
1489198 |
Pivot Arm |
300円 |
34 |
1609391 |
Bail Arm |
200円 |
35 |
1489199 |
35--Line Roller |
1000円 |
35A |
1489200 |
35A--Roller Bearing |
2000円 |
36 |
1191699 |
Sub Part# 1191703 SCREW BAIL STUD |
800円 |
38A |
1308069 |
38A-CFT3000 Rotor Locking Plate Screw |
600円 |
38D |
1308070 |
38D-CFT3000 ROTOR NUT WASHER |
600円 |
38 |
1632370 |
Rotor Nut |
300円 |
38F |
1632375 |
Main Shaft Seal Ring |
200円 |
39 |
1529379 |
Main Shaft Assembly |
700円 |
43A |
1191818 |
PLATE CROSSWIND BLOCK |
600円 |
43 |
1485219 |
Crosswind Block |
200円 |
43B |
1489213 |
Plate Screw (5 req) |
300円 |
44 |
1191843 |
SCREW CROSSWIND BLOCK |
400円 |
45 |
1632371 |
Housing Cover |
1000円 |
46 |
1192645 |
Screw (3 req) |
300円 |
47D |
1489217 |
Line Clip |
300円 |
47F |
1489218 |
Line Clip Spring |
300円 |
47H |
1489219 |
Line Clip Spring Screw |
200円 |
47 |
1632372 |
SPOOL ASSEMBLY |
5800円 |
48 |
1211604 |
Click Tongue |
300円 |
48A |
1214226 |
48A-3000SG Click Tongue Washer |
300円 |
48B |
1489220 |
48B--Spool Click Screw |
300円 |
49 |
1211605 |
49-3000SG CLICK TONGUE SPRING |
300円 |
51 |
1308078 |
Drag Retaining Ring |
300円 |
52 |
1632373 |
Drag Knob Assembly |
500円 |
56 |
1308080 |
DRAG WASHER |
500円 |
57 |
1192043 |
Keyed Washer |
300円 |
60 |
1529383 |
Thrust Washer |
200円 |
95B |
1308081 |
Rotor Locking Plate |
400円 |
98W |
1204004 |
98W-3000PUR Clutch Washer |
300円 |
98C |
1308082 |
Clutch/SleeveAssembly |
3000円 |
132A |
1489225 |
132A--Line Roller Bushing |
300円 |
132 |
1529384 |
Roller Washer |
200円 |
226A |
1529386 |
Rear Cover Screw |
200円 |
226 |
1632374 |
Rear Cover |
200円 |
231 |
1485217 |
Crosswind Gear |
300円 |
231B |
1489230 |
Crosswind Gear Screw |
300円 |
233 |
1632346 |
Bearing Cover Assy |
300円 |
